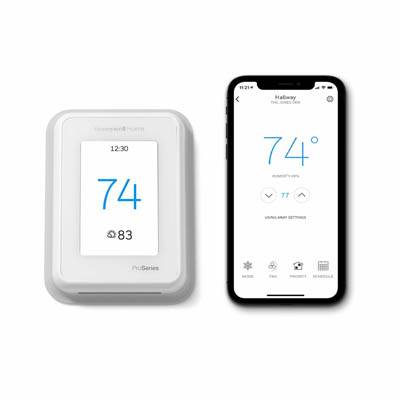

Honeywell T10 Smart Thermostat with RedLINK® Room Sensor

T10 PRO SMART THERMOSTAT WITH REDLINK® ROOM SENSOR

THERMOSTAT TYPE

Programmable, Communicating, Low Voltage, Digital

STAGES

Up to 3 Heat/2 Cool Heat Pump, Up to 2 Heat/2 Cool Conventional

SMART HOME INTEGRATION

Yes

PROGRAM MODES

7-Day Programmable, 5-1-1 Programmable, 5-2 Programmable, 1 Week, Manual / Not Programmed, Uses Sensors for Priority Scheduling

APPLICATION

24 V AC Systems, Conventional Systems, Heat Pumps, Gas,, Oil, Electric, Steam/Gravity Systems, Dual Fuel

TOUCHSCREEN

Yes

WARRANTY

5 Years

APPROVALS AND STANDARDS

FCC: 47 CFR § 15.19 (a)(3), 47 CFR § 15.21 (USA only), & 47 CFR § 15.105 (b). IC REGULATIONS: RSS-GEN

INCLUDES

Thermostat, UWP mounting system, Installation (J-box) adaptor, RedLINK® indoor sensors

PRODUCT HEIGHT

4.9 in, 125 mm

PRODUCT WIDTH

3.7 in, 94 mm

COLOR

White

BACKLIGHT OPTIONS

Adjustable

HEAT-COOL CHANGEOVER

Auto, Manual

COMMUNICATION TYPE

WiFi

DEMAND RESPONSE

Yes

DISPLAY TYPE

Touch Screen

FAN FUNCTION

Cycled, Continuous

OPERATING RELATIVE HUMIDITY (MIN)

5% Non-condensing

REDLINK

No

TEMPERATURE ACCURACY

± 1.5 °F, ± 0.83 °C

WIFI

Yes

WIFI SPECIFICATIONS

802.11b, 802.11g, 802.11n, 2.4GHz range, 5GHz range

AMBIENT OPERATING TEMPERATURE (MIN)

37 °F, 2.8 °C

CONTROL FUNCTIONS

Heating

CYCLE RATE

Heating Adjustable 1,3,5,9 CPH

DIFFERENTIAL TEMPERATURE

± 1 °F, ± 0.5 °C

DISPLAY SIZE

7.27 sq. in.

MOUNTING TYPE

Vertical Mount

OPERATING FREQUENCY

50, 60

OPERATING VOLTAGE (MAX)

30 V AC

SCALE MARKINGS

50-60-70-80 ?°F

SENSOR TYPE

Thermistor

SHIPPING AND STORAGE TEMPERATURE (MIN)

-20 °F, -29 °C

MOUNTING LOCATION

Internal, Wall
